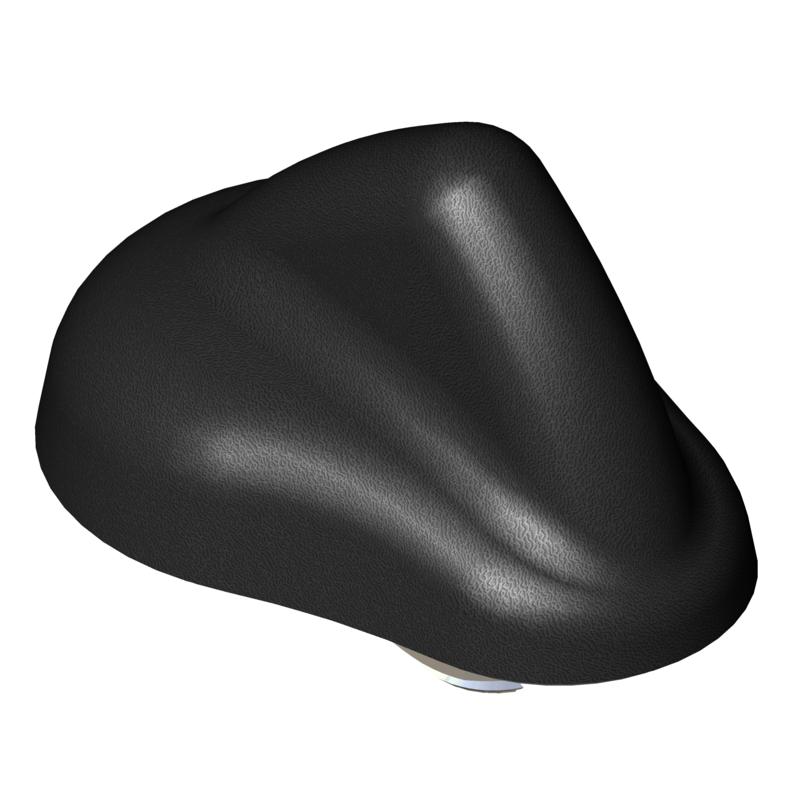

GPS/GSM Roof Mount Fin Antenna (GPSF-F)

Compact Fin Style GPS & GSM Panel Mount Antenna

Gain (GSM): 2dBi (GPS): 26dBi

Dimensions (mm): 68 x 48 x 43

Operational bands: GSM900 / GSM1800 /PCS / 3G UMTS

Multiband
The GPSF is a dual function compact fin style with tri-band GSM900/1800/1900MHz + 3G/UMTS and an active GPS antenna. Standard GPS LNA gain is 26dB, version R has a 13dB gain LNA.

Panel Mount
The GPSF Antenna only requires a single 14mm hole to mount it on the roof of a vehicle. The antenna can be mounted on a panel up to 6mm thick.

Applications:

Taxi
The GPSK aerial is used by Taxi companies to eneble constant communication between the car and the station.

Logistics
The single hole installation of a high performance antenna makes it a popular choice for installers and is used by many courier companies.

Download Data Sheet
