0337015.PX2S Littelfuse MICRO3 Blade Fuse 15 Amp (FB3M.15) Pack of 50
Same day despatch on orders placed before 4pm

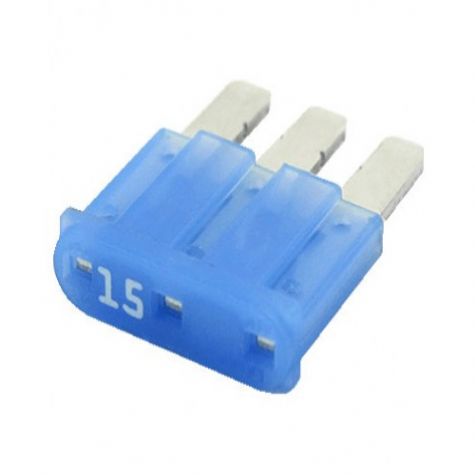

0337015.PX2S Littelfuse MICRO3 Blade Fuse 15 Amp (FB3M.15)
Littlefuse Part Number 0337015.PX2S
Pack Size 50
Littelfuse 337 Series MICRO3™ Blade 32V Fuses combine two individual fused circuits in a single sub-miniature body to provide an ideal solution for space-constrained systems.
By housing two fuse elements in a single package less than 15mm wide with 5mm terminal spacing, MICRO3™ allows for more circuits in a smaller space, decreases harness weight, maximizes available area, and reduces overall complexity in automotive and other applications. Designed to perform from -40°C to over 125°C, MICRO3™ is rated for high temperature under hood operation. In addition, MICRO3™ features a tighter overload tolerance than industry standards (120 sec max @ 135% Ir), enabling designers to further optimize their wiring systems. Littelfuse offers the 337 Series MICRO3™ Blade 32V Fuses in four different current ratings, ranging from 5A to 15A,with a 32 VDC rating and standard 2.8mm terminals.
