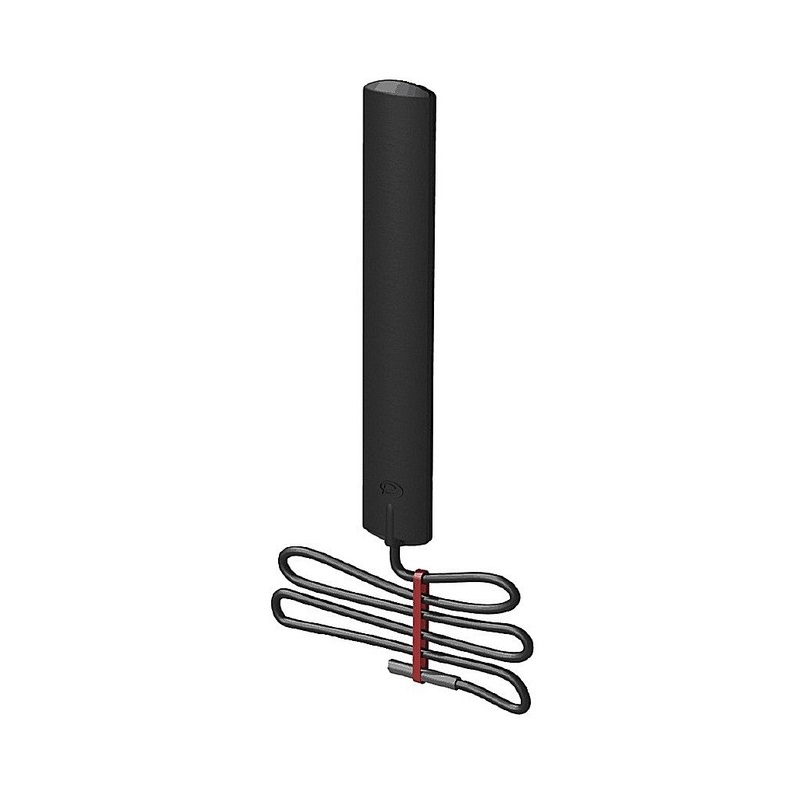

4G MULTIBAND CELLULAR M2M EASY-FIT ANTENNA (EF-BCG-26-3SP)
Available in 5 days
Same day despatch on orders placed before 4pm
Code: EF-BCG-26-3SP
4G MULTIBAND CELLULAR M2M EASY-FIT PANORAMA ANTENNA
- 7 bands - 700MHz LTE, Quadband cellular, 3G UMTS, AWS, LTE / WIMAX 2.6GHz
- Discreet adhesive pad fitment
- Suitable for mounting to plastic or glass
EF-BC3G-26 is a range of highly efficient and portable antennas for 2G/3G/4G modems and datacards. These paddle style antennas are easily positioned on a device housing or vehicle windscreen using the supplied automotive industry grade adhesive pad.
The antenna is ultrawideband and ground plane independent making it ideal for global machine-to-machine and mobile data applications. Covering 698-960 / 1710-2170 /2396-2700MHz the EF-BC3G-26 is designed to support the full range of 2G/3G and 4G frequencies globally.
The antenna is constructed from weather resistant plastic and is suitable for use in semi-exposed scenarios.
Specification
- Frequency Range (MHz): 698-960, 1710-2170, 2396-2700
- Operational Band: LTE 700, GSM850 / CDMA850, GSM900, GSM1800, PCS1900, 2G/3G/4G, UMTS, AWS, LTE/WIMAX2600
- Peak Gain: 2dB
- Compared to 1/4 wave: 0dB
- Polarisation: Vertical
- Pattern: Omni-directional
- Impedance: 50Ω
- Max Input Power (W): 25
- Length: 131mm
- Width: 21.7mm
- Thickness: 7mm
- Operating Temp (°C): -30° / +70°C
- Colour: Black
- Mounting: Adhesive
- Cable: RG174 3 Meters
- Termination: SMA Male (Plug)
EF-BC3G-26 is a range of highly efficient and portable antennas for 2G/3G/4G modems and datacards. These paddle style antennas are easily positioned on a device housing or vehicle windscreen using the supplied automotive industry grade adhesive pad.
The antenna is ultrawideband and ground plane independent making it ideal for global machine-to-machine and mobile data applications. Covering 698-960 / 1710-2170 /2396-2700MHz the EF-BC3G-26 is designed to support the full range of 2G/3G and 4G frequencies globally.
