Low Profile Mimo Cellular Antenna (LPAM-BC3G-26-1SP)

Code: LPAM-BC3G-26-1SP

£35.90 +VAT

In stock

Same Day Despatch Order before 4pm
Free Delivery On orders over £100 to UK mainland
Expert Support Speak to a technical expert

Compatible with the Cradlepoint COR AER2200 / COR AER1600 / CBA850 SERIES

Low Profile MiMo Cellular Antenna with optional GPS/GNSS

Panel Mount

2 x 2 Cellular / LTE MiMo and optional GPS/GNSS

Robust and cost effective solution for M2M and IOT applications

The LPAM-BC36-26 range has been deisgned to provide MiMo Cellular / LTE antenna function for IOT and M2M applications. The compact, robust low-profile housing is weatherproof and contains two antenna elements with effective isolation and correlation covering all current global cellular and LTE bands in freq. range 698-960/1710-3800MHz. Thr LG version includes an active GPS/GNSS/Galileo/Beidou antenna for applications which require position or timing function.

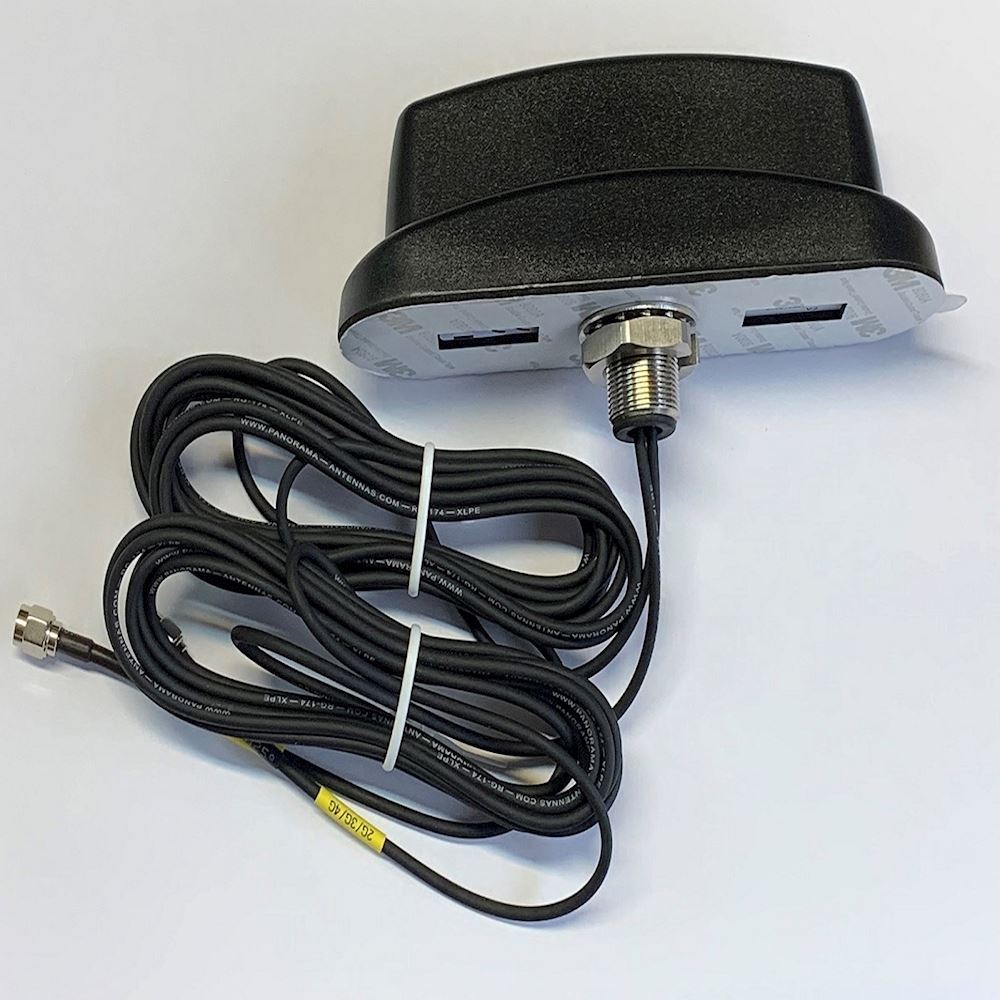

The antenna can be fitted on a non-conductive panel if required* and offers easy, quick, secure and weatherproof installation with the single hole mounting bush and acrylic adhesive sealing pad. Supplied with integrated 3m (10') cables and SMA plug connectors, the antenna will offer plug and play connectivity with many different terminals.

*Performance may change depending on mounting position/surface.
