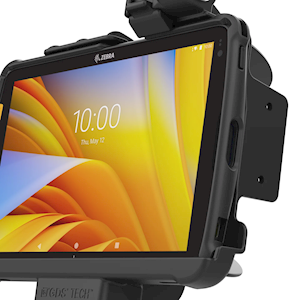

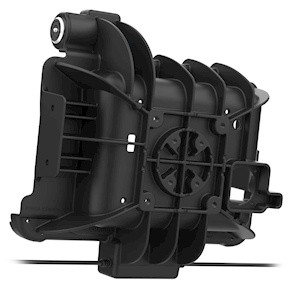

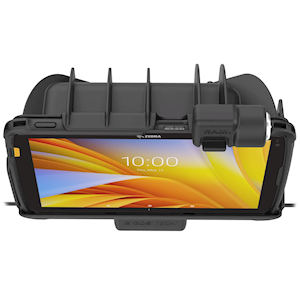

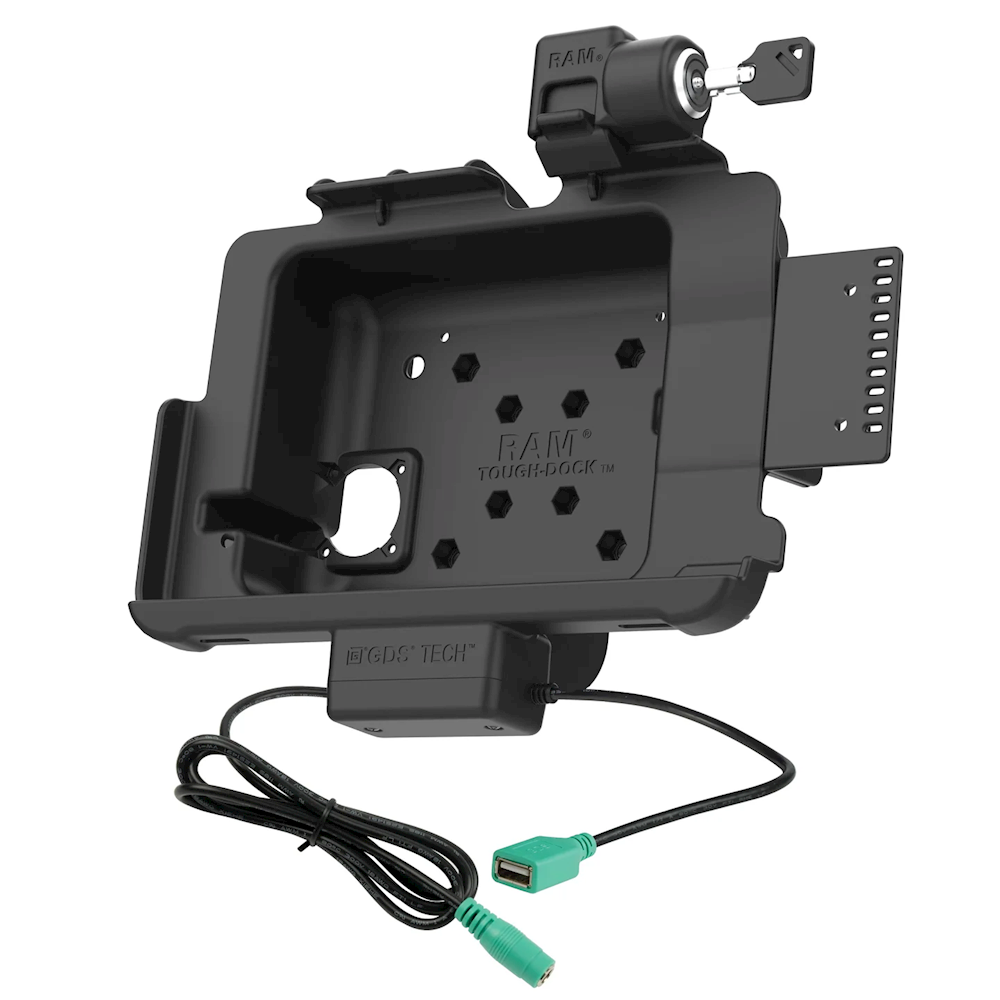

Locking RAM® Tough-Dock™ Power + Data for Zebra ET4x 10" Tablet

£164.99 +VAT

FREE Delivery on orders over £100 to UK mainland

In stock

Same day despatch on orders placed before 4pm

Code: RAM-HOL-ZE21PDKL

FEATURES

  • Locking RAM® Tough-Dock with data and charging capabilities for the Zebra ET40 & ET45 10" enterprise tablets with Rugged Frame via DC 5.5mm power jack and USB Type A connector for adding a peripheral; MIL-STD 810G Shock and Vibration tested
  • When connected to a power source, integrated pogo pins provide power to the device while docked; Dock accommodates tablet add-ons such as the Expansion Back and PowerPack Battery; tablet scanning works while tablet is docked
  • Compatible with C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
  • Built-in 2-hole mounting plate for additional device mounting such as a phone; compatible with RAM® 2-hole diamond bases and accessory side bracket
  • Backed by a 3-year warranty

OVERVIEW

Featuring data and charging capabilities and a key lock for theft deterrence, the RAM® Tough-Dock for Zebra ET40 & ET45 10" enterprise tablets with Rugged Frame allows you to connect a desired peripheral while keeping the device charged through the pogo pin contacts when the device is docked. Power is provided by connecting to the dock's 5.5mm DC power jack, while peripheral support is provided by the built-in USB Type-A cable. The dock also allows the tablet's scanning function to work on the side, as well as tablet add-ons such as the Zebra Expansion Back and PowerPack Battery. This vehicle dock is compatible with C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution. Take the solution a step further by taking advantage of the built-in 2-hole mounting plate compatible with RAM® 2-hole diamond base for additional device mounting such as a phone or other handheld device.

HARDWARE INCLUDED

(2) Keys
(1) Side bracket for accessory mounting
(4) #8-32 x 5/8” Machine Screws
(2) #8-32 x 1/2” Machine Screws
(6) #8-32 Nylock Nuts
(4) #10-24 x 5/8” Machine Screws
(4) #10-24 Nylock Nuts
(2) Small Cable Ties

HOLE PATTERN

75 x 75mm VESA
4-Hole AMPS: 1.181" x 1.496"

MATERIALS

High strength composite

PACKAGING TYPE

Poly Bag

INPUT CONNECTOR

5.5mm DC Connector

INPUT CABLE LENGTH

1 Meter

OUTPUT CONNECTOR

USB 2.0 Type A

OUTPUT CABLE LENGTH

242mm

TRANSFER SPEED

12Mbps

CERTIFICATIONS

RoHS
WEEE
CE
UKCA

WARRANTY

3 year warranty

WEIGHT

0.84 kg

ADDITIONAL INFORMATION

This dock is not compatible with IntelliSkin®. For IntelliSkin® with GDS® Tech, see RAM-GDS-DOCKL-ZE21PDU
