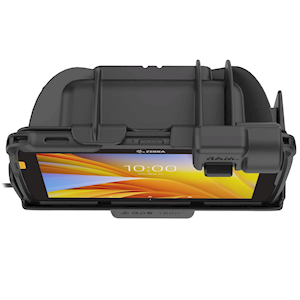

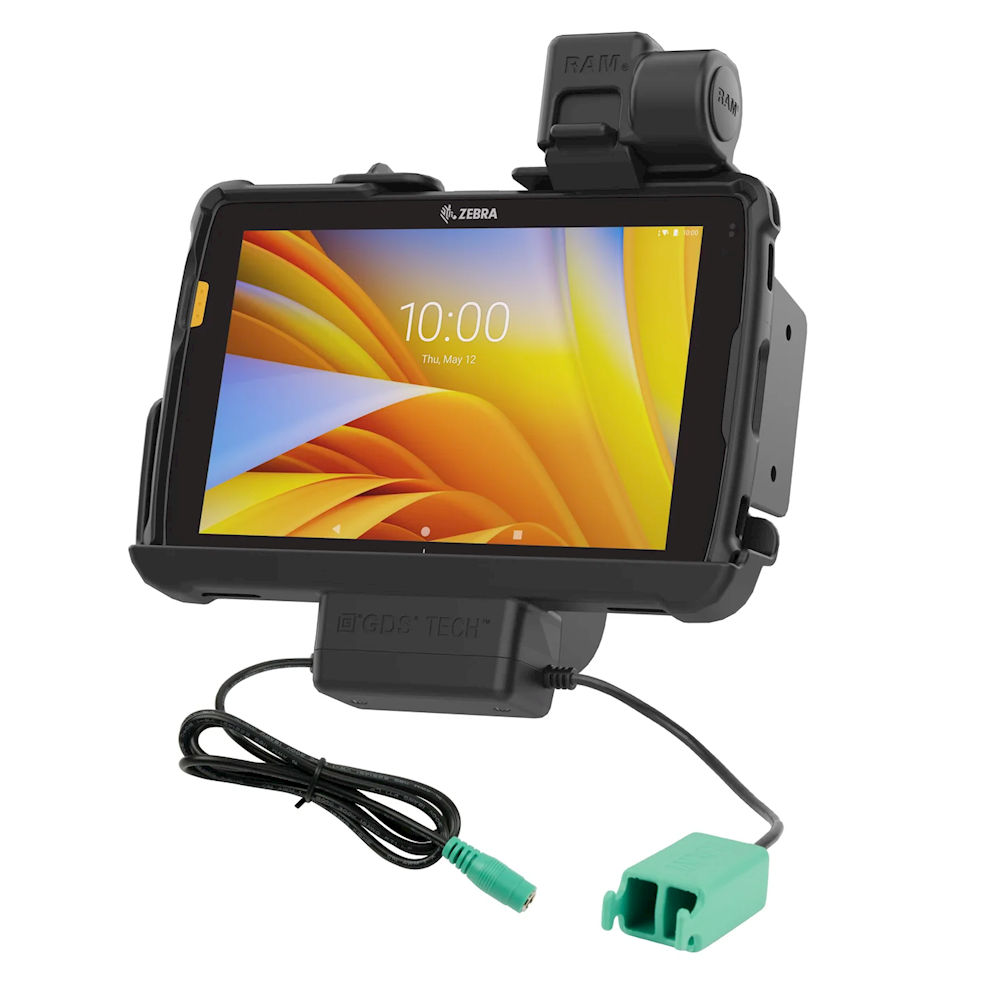

RAM® Tough-Dock™ Power + Dual USB with Latch for Zebra ET4x 8" Tablet
In stock
Same day despatch on orders placed before 4pm
Code: RAM-HOL-ZE20PD2NLL
FEATURES
- Form-fit + dual USB Type-A dock designed specifically for the Zebra ET40 & ET45 8" tablets with Rugged Frame, including a top latch design for frequent docking and undocking of the tablet
- When connected to a power source via DC 5.5mm power jack, integrated pogo pins provide power to the device while docked
- Space in the back of the dock to accommodate tablet add-ons such as the Expansion Back, PowerPack Battery, and GDS® Ergo™ accessories

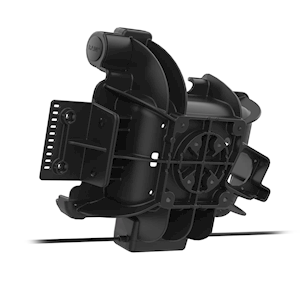

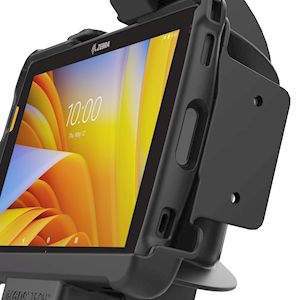

- Built-in 2-hole mounting plate for additional device mounting such as a phone, scanner, printer, and more
- Backed by a 3-year warranty
OVERVIEW
The RAM® Tough-Dock™ Power + Dual USB with Latch for Zebra ET4x 8" Tablet (RAM-HOL-ZE20PD2NLLU) features a top latch design for securing the tablet without wear and tear on the dock itself. Power is provided via a 5.5mm DC barrel connector and allows you to keep the device charged through the pogo pin contacts when the device is docked. A dual USB Type-A pigtail connector is provided for adding up to two additional input device. The dock also includes space in the back for tablet add-ons such as the Zebra Expansion Back, PowerPack Battery, and GDS® Ergo™ accessories like the GDS® Roto-Mag™ and GDS® Hand-Stand™. To mount this dock, pair any C and D size RAM® 4-hole AMPS or 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution. Take the solution a step further by taking advantage of the built-in 2-hole mounting plate compatible with RAM® 2-hole diamond base for additional device mounting such as a phone, scanner, printer, or any other handheld device.
HARDWARE INCLUDED
(1) Side bracket for accessory mounting
(4) #8-32 x 5/8” Machine Screws
(2) #8-32 x 1/2” Machine Screws
(6) #8-32 Nylock Nuts
(4) #10-24 x 5/8” Machine Screws
(4) #10-24 Nylock Nuts
(2) Small Cable Ties
HOLE PATTERN
75 x 75mm VESA
4-Hole AMPS: 1.181" x 1.496"
MATERIALS
High strength composite
PACKAGING TYPE
Poly Bag
INPUT CONNECTOR
5.5mm DC Connector
INPUT CABLE LENGTH
1 Meter
OUTPUT CONNECTOR
(2) USB 2.0 Type A
OUTPUT CABLE LENGTH
250mm
TRANSFER SPEED
12Mbps
CERTIFICATIONS
RoHS
WEEE
FCC
CE
ICES
UKCA
WARRANTY
3 year warranty
WEIGHT
0.69 kg
ADDITIONAL INFORMATION
This dock is not compatible with IntelliSkin®. For IntelliSkin® with GDS® Tech™, see RAM-GDS-DOCKNLL-ZE20PD2
