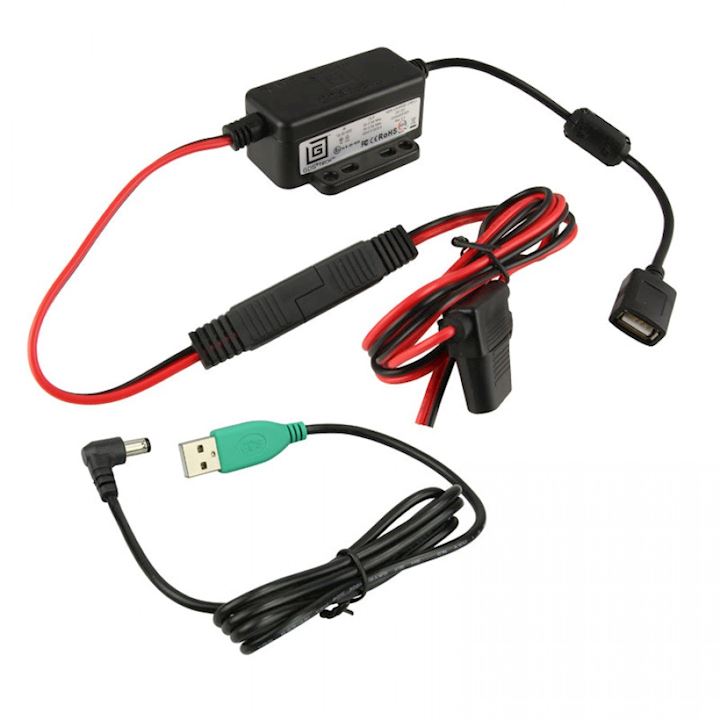

GDS® Modular 10-30V Hardwire Charger with 90-Degree DC Cable
In stock
Same day despatch on orders placed before 4pm
Code: RAM-GDS-CHARGE-M55-V7B1
OVERVIEW
The GDS® Modular Hardwire Charger with DC cable is the ideal solution for providing power to any GDS® vehicle solution. With the quick disconnect feature, easily connect any USB Type A charging cable. When it comes time to upgrade, avoid any rewiring by simply unplugging the power connector and attaching the new charger components.
PACKAGING TYPE
Poly Bag
INPUT VOLTAGE
10V - 30V DC
OUTPUT VOLTAGE
5-9VDC*
OUTPUT CURRENT
2.5A max
INPUT CONNECTOR
90° DC Plug
INPUT CABLE LENGTH
1.2 Meters including 2 Pole Flat Marine Connector
OUTPUT CABLE LENGTH
.2 Meter
OPERATING TEMPERATURE
-10°C to +70°C
STORAGE TEMPERATURE
-40°C to +70°C
COMPLIANCE
Over Voltage Protection
Short Circuit Protection
Reverse Polarity Protection
RoHS Compliance
WEEE Compliance
SAE J-1113-5 Load Dump (Transient Voltage)
Moisture Resistant
CERTIFICATIONS
CE Certification
e-Mark Certification
RCM Certification
FCC Certification
WARRANTY
3 year warranty
WEIGHT
0.17kg
ADDITIONAL INFORMATION
*5V output is by way of USB 2.0 BC1.2 and DCP mode. 9V output is by way of AFC and QC 2.0.
