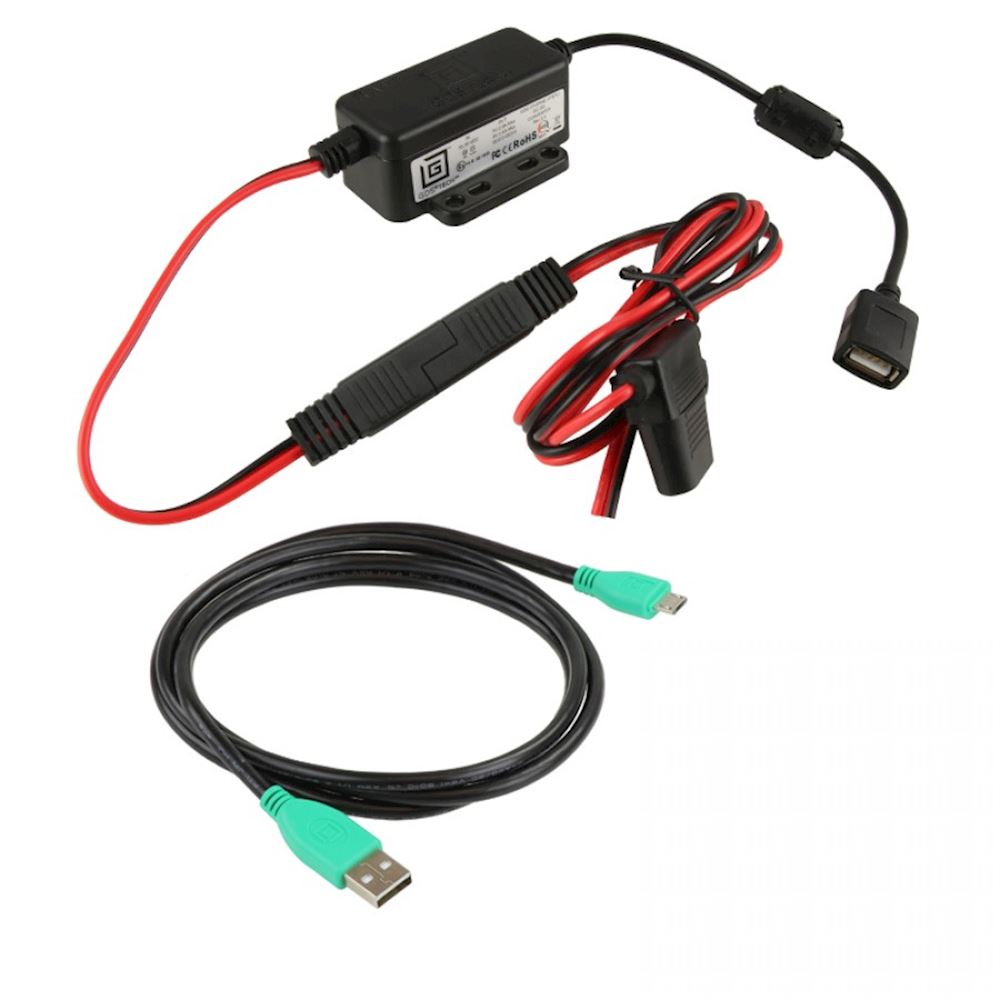

GDS® Modular 10-30V Hardwire Charger with mUSB Cable

FEATURES

Hardwire charger includes USB 2.0 cable with USB Type-A male connection and mUSB male connection

When upgrading devices, avoid rewiring by unplugging power connector and attaching new charger components

Part of the GDS® Ecosystem™ to keep devices protected, connected, and charged in nearly any application

Backed by a 3-year warranty

OVERVIEW

The GDS® Modular Hardwire Charger with mUSB cable is the ideal solution for providing power to any GDS® vehicle solution. With the quick disconnect feature, easily connect any USB Type A charging cable. When it comes time to upgrade, avoid any rewiring by simply unplugging the power connector and attaching the new charger components. Compatible with any 5V device with a current requirement of 2.5A or less.

PACKAGING TYPE

Poly Bag

INPUT VOLTAGE

10V - 30V DC

OUTPUT VOLTAGE

5-9VDC

OUTPUT CURRENT

2.5A max

INPUT CONNECTOR

mUSB 2.0 Female

INPUT CABLE LENGTH

1.2 Meters including 2 Pole Flat Marine Connector

OUTPUT CABLE LENGTH

.2 Meter

OPERATING TEMPERATURE

-10°C to +70°C

STORAGE TEMPERATURE

-40°C to +70°C

COMPLIANCE

Over Voltage Protection

Short Circuit Protection

Reverse Polarity Protection

RoHS Compliance

WEEE Compliance

SAE J-1113-5 Load Dump (Transient Voltage)

Moisture Resistant

CERTIFICATIONS

CE Certification

e-Mark Certification

RCM Certification

FCC Certification

WEIGHT

0.18kg

WARRANTY STATUS

3 year warranty

Replaces RAM-GDS-CHARGE-V7-MUSB
