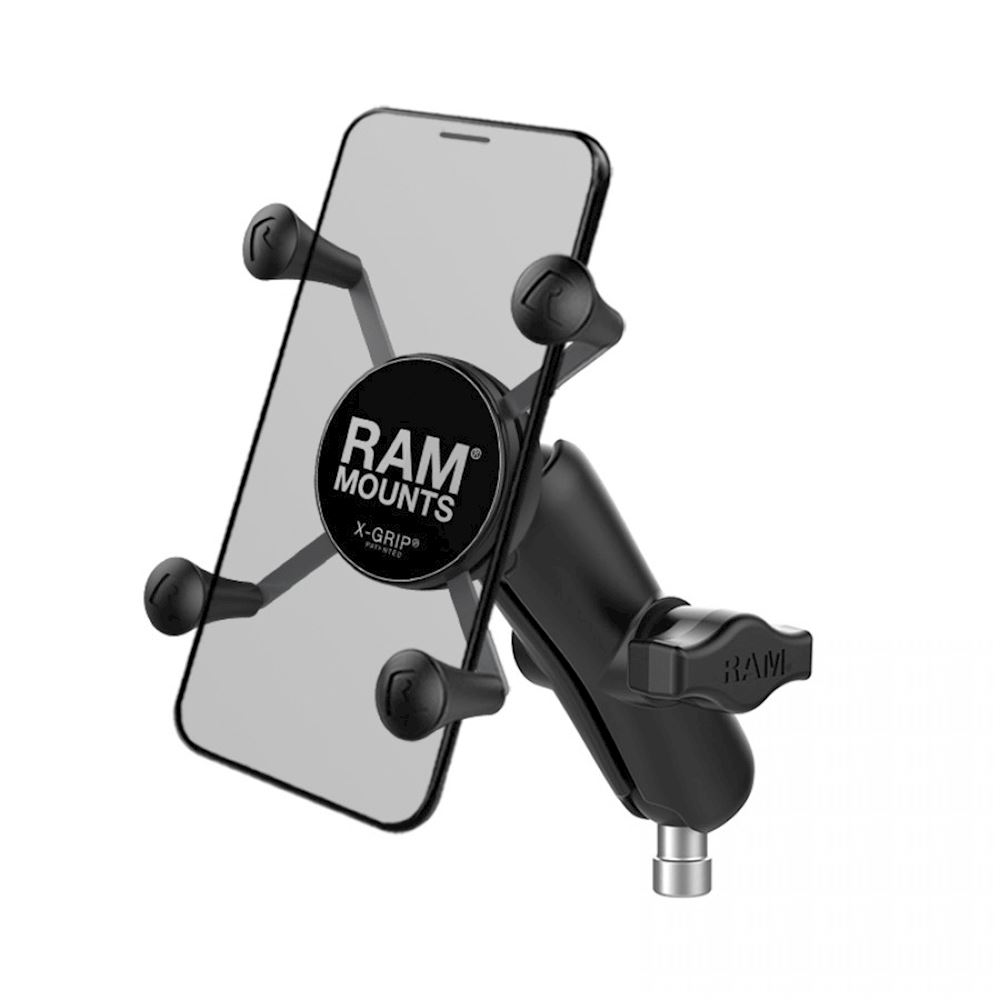

X-Grip® Phone Mount with Motorcycle Handlebar Clamp Base

OVERVIEW

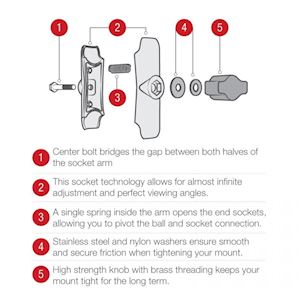

The RAM-B-367-UN7 consists of a motorcycle handlebar clamp base with M8 threads, double socket arm and universal X-Grip® cradle. This mount will replace one of the M8 bolt heads on your handlebar clamp system, positioning your device clean in the center. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The included X-Grip® cradle has a clean and clever four leg design that sports great holding power without hiding your phone behind foam pads and plastic. The spring loaded X-Grip® cradle expands and contracts, allowing for a perfect custom fit of your cell phone. The perfect complement to the modern sleek interior of today's vehicles, the RAM X-Grip® is the cell phone cradle evolved. The X-Grip® includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.

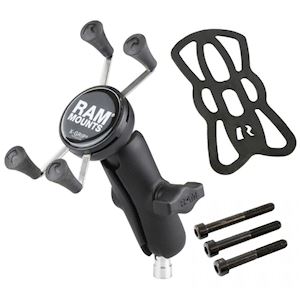

HARDWARE INCLUDED

(1) Optional Tether

(1) Glue Tube for Rubber Caps

(1) M8 x 55mm Socket Head Cap Screw

(1) M8 x 60mm Socket Head Cap Screw

(1) M8 x 65mm Socket Head Cap Screw

HOLDER DIMENSIONS

Width Range: 1.875" - 3.25"

Depth Range: .875" max

SOCKET-TO-SOCKET LENGTH

3"

BALL/SOCKET SIZE

B Size (1")

WEIGHT CAPACITY

Standard Use: 1kg

Heavy-Duty Use: 450g

MATERIALS

Marine-grade aluminium

High strength composite

Stainless steel

WEIGHT

340g

ADDITIONAL INFORMATION

To determine if these bolts are compatible with your motorcycle measure the bolt for the diameter and add 30mm to the length. If it matches one of the 55, 60, or 65 mm length, then you can use the appropriate bolt supplied with the mount. If it does not match, you may be able to source the correct length of bolt locally or from your BMW dealer. Be sure to use the correct torque spec when attaching the mount.
