Marine Electronics Base Plate 1" Ball
In stock
Same day despatch on orders placed before 4pm
Code: RAM-B-111B

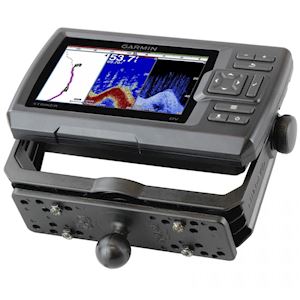

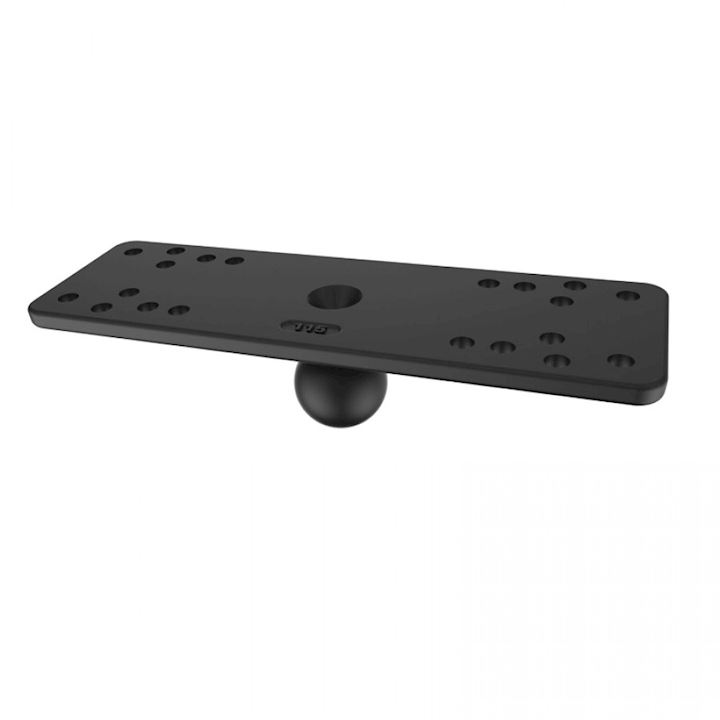

The RAM-B-111BU consists 1" diameter rubber ball connected to a flat 6.25" x 2" rectangle base. The base contains different combinations of pre-drilled holes which will match up to many electronic devices and mounts, including Marine GPS, CB Radios, Ham Radios, Gimbal Brackets and more.
HOLE PATTERN

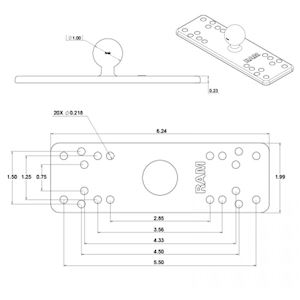

See Drawing
PLATE SIZE
6.25" x 2"
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
MATERIALS
Marine-grade aluminium
PACKAGING TYPE
Poly Bag
WEIGHT
0.32 lbs.
ADDITIONAL INFORMATION
This plate is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.
