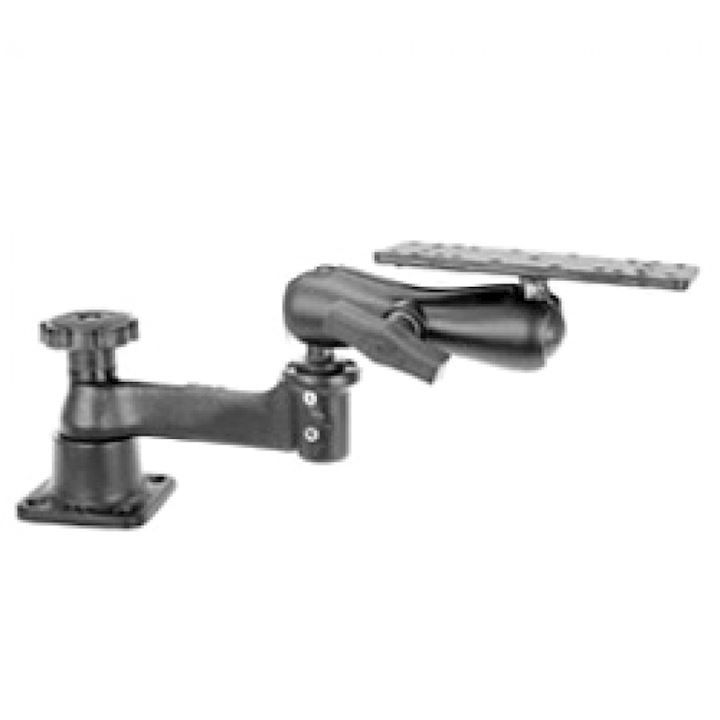

The RAM double swing and socket arm mount includes a 6" straight swing arm mounted on a horizontal surface mounting base. At the end of the mount is a rectangular 6.25" x 2" top base. The bolt pivoting point of the mount allows a 360 degree rotation.
RAM-109H-2 Dimensions
A. Overall length: 15.41"
B. Overall height: 6.76"
C. Length from bottom of base to top of knob: 4.89"
Ball Size:
1.5 Inch Rubber Ball
Color:
Black Powder Coat
Material:
Powder Coated Marine Grade Aluminium
