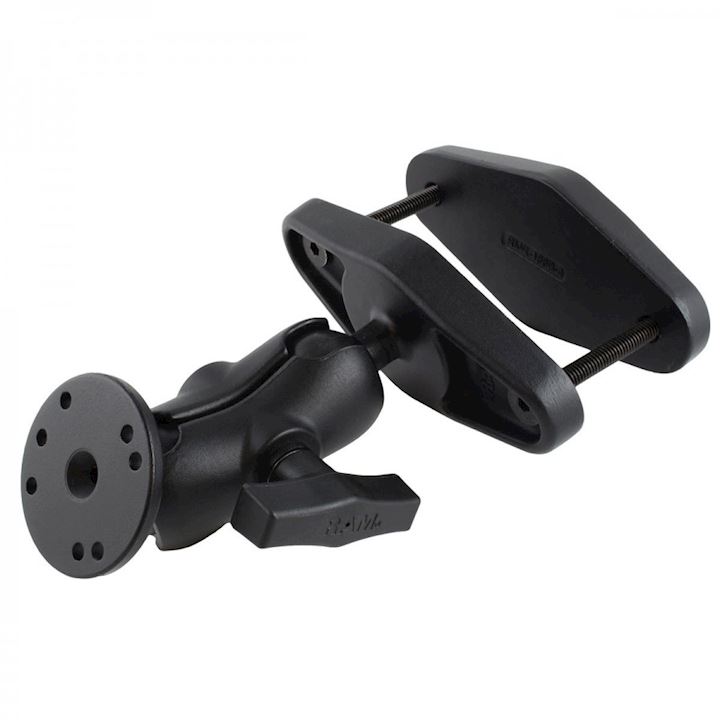

RAM® Square Post Clamp Mount for Posts up to 4" Wide

The RAM-101-B-247-25 consists of a short length double socket arm, 2.5" diameter round base with the universal AMPS hole patternand a 4" maximum width square post clamp base.

HARDWARE INCLUDED

(2) 5/16"-18 x 3" Machine Screws

(2) 5/16"-18 Nylock Nuts

CLAMP RANGE

4" max width

SOCKET TO SOCKET LENGTH

2.5"

HOLE PATTERN

4-Hole AMPS: 1.181" x 1.496"

3-Hole 120-Degree: 1.812" Diameter

BALL SIZE

C Size (1.5")

WEIGHT CAPACITY

Standard Use: 4 lbs

Heavy-Duty Use: 3 lbs

MATERIALS

Marine-grade aluminium

PACKAGING TYPE

Poly Bag

WEIGHT

0.84
