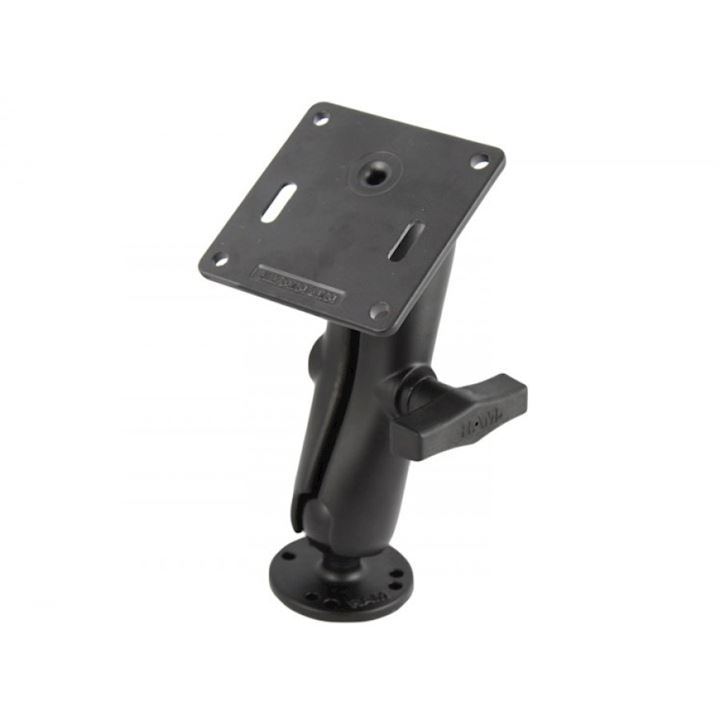

RAM® Double Ball Mount with 75x75mm VESA Plate

OVERVIEW

The RAM-101-2461 consists of a STANDARD length double socket arm, 2.5" diameter round base with the universal AMPS hole pattern and 3.625" square plate with the VESA hole pattern. The VESA plate contains a 75mm X 75mm hole pattern. Designed into the mount is a 1.5" diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm. Rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles.

PRODUCT DIMENSIONS

Overall Height: 7.35"

SOCKET-TO-SOCKET LENGTH

4.66"

HOLE PATTERN

4-Hole AMPS: 1.181" x 1.496"

3-Hole 120-Degree: 1.812" Diameter

PLATE SIZE

VESA Plate: 3.625" x 3.625"

Round Plate: 2.5" Diameter

BALL/SOCKET SIZE

C Size (1.5")

WEIGHT CAPACITY

Standard Use: 1.81 kg

Heavy-Duty Use: 1.36 kg

MATERIALS

Marine-grade aluminium

PACKAGING TYPE

Poly Bag

WEIGHT

0.6 kg.

COMPONENTS

RAM-201

RAM-2461

RAM-202
Components:
RAM-201
RAM-2461
RAM-202
