RAM® Track Ball™ Marine Electronic Mount

RAM® Track Ball™ Marine Electronic Mount

FEATURES

Fishfinder track mount designed for track mounting systems including the RAM® Tough-Track™ and other third party track systems

Includes 1.5" diameter C size RAM® Track-Ball™, medium length C size socket arm, and 6.25" x 2" adapter plate for fishfinders and GPS chartplotters; RAM® Mounts ball and socket technology allows for near-infinite adjustability

RAM® Track-Ball® compatible with most integrated kayak tracks

Adapter plate compatible with select Garmin, Lowrance, Raymarine and Humminbird Fishfinders and GPS chartplotters

Backed by a lifetime warranty

OVERVIEW

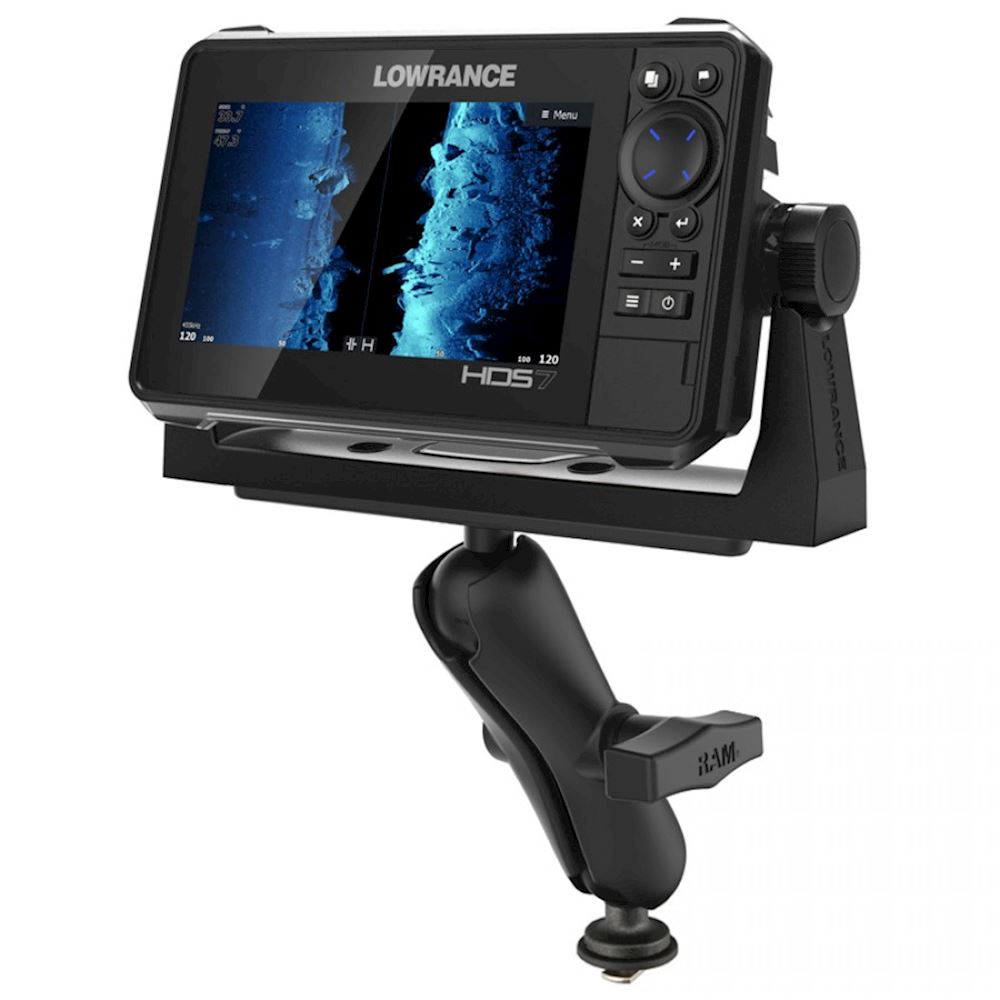

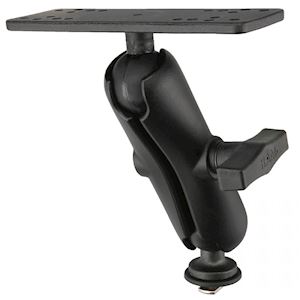

The RAM-111B-354-TRA1U consists of a Track Ball™ base that can attach to any track system including the RAM Tough-Track™. Connected to the base is a standard length double socket arm and 6.25" x 2" rectangle plate for supporting a wide range of fishfinders and chartplotters. The rectangular plate contains different combinations of pre-drilled holes which will match up to many electronic devices and mounts, including Marine GPS, CB Radios, Ham Radios, Gimbal Brackets and more.

HARDWARE INCLUDED

(1) Friction Washer

(1) 1/4"-20 x 7/8" T-Bolt

PRODUCT DIMENSIONS

Overall Height: 7.5"

T-BOLT DIMENSIONS

.48" x .95"

SOCKET-TO-SOCKET LENGTH

4.66"

HOLE PATTERN

See Drawing

PLATE SIZE

6.25" x 2"

BALL SIZE

C Size (1.5")

WEIGHT CAPACITY

Standard Use: 4 lbs

Heavy-Duty Use: 3 lbs

MATERIALS

Marine-grade aluminium

High strength composite

PACKAGING TYPE

Poly Bag

WEIGHT

0.5kg

ADDITIONAL INFORMATION

The included plate is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.
