RAM® Universal Backing Plate Mount w/ Short Arm

RAM® Universal Backing Plate Mount w/ Short Arm

OVERVIEW

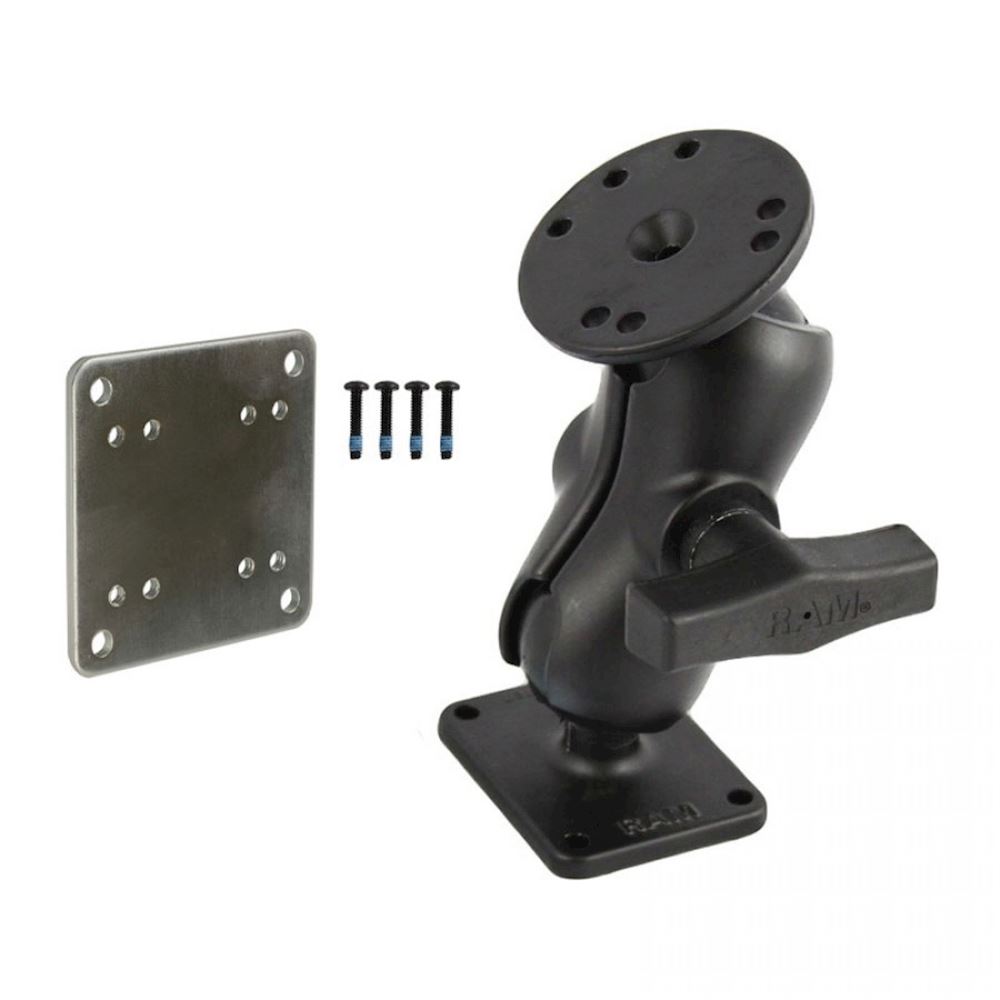

The RAM-101-B-XAT1 consists of a SHORT double socket arm, 2.5" diameter round base with the universal AMPS hole pattern and 2" x 2.5" rectangular base. Rubber ball, socket technology dampens shock and vibration, as well as allows for almost infinite adjustment, perfect viewing angles.

HARDWARE INCLUDED

(1) 3" x 3" Steel Backing Plate

(4) #10-24 x 1" Thread Locking Screws

PRODUCT DIMENSIONS

Overall Height: 5.225"

SOCKET-TO-SOCKET LENGTH

2.5"

HOLE PATTERN

Round Plate:

4-Hole AMPS: 1.181" x 1.496"

3-Hole 120-Degree: 1.812" Diameter

Rectangular Plate: 1.5" x 2"

BALL/SOCKET SIZE

C Size (1.5")

WEIGHT CAPACITY

Standard Use: 4 lbs

Heavy-Duty Use: 3 lbs

MATERIALS

Marine-grade aluminium

Steel

PACKAGING TYPE

Poly Bag

WEIGHT

560g
