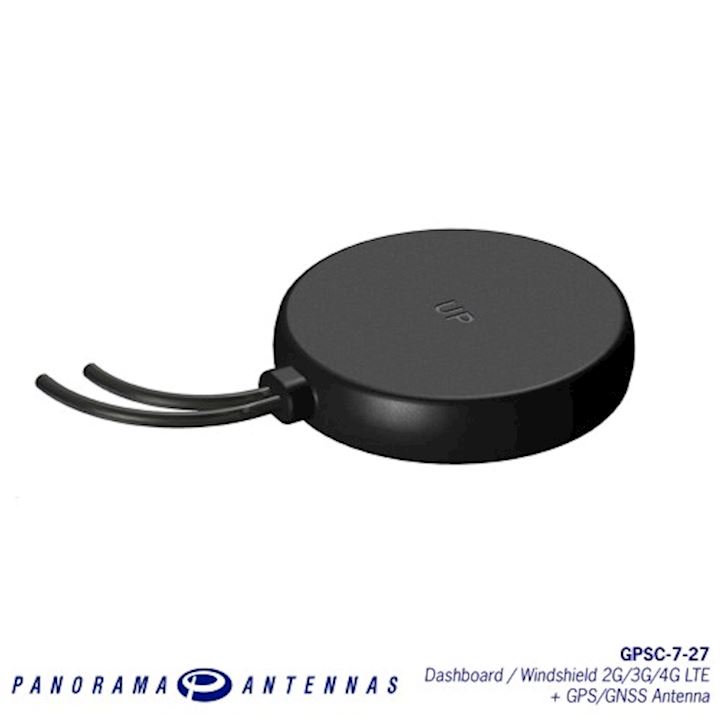

Cellular & GPS/GNSS Antenna (GPSC-7-27-3SP)

£34.91 +VAT

In stock

Code: GPSC-7-27-3SP

The GPSC-7-27-3SP is a cost effective solution for telematics / asset tracking applications requiring 2G/3G/4G and GPS/GNSS.

  • Supports 2G/3G/4G

  • Mount on or under dashboard on windshield

  • GPS/GNSS (26dB LNA)

The compact, robust low-profile housing contains an antenna element covering all current global cellular and LTE bands in freq. range 698-960/1710-2700MHz along with a GPS/GNSS/Galileo/Beidou antenna for applications which require a positioning function.

The antenna can be fitted on or under a vehicle dashboard or on a windshield using the supplied acrylic adhesive sealing pad. Supplied with integrated 3m (10’) cables with SMA plug connectors, the antenna will offer plug and play connectivity with many different devices.

Download Data Sheet
